ODM OEM CRP Pipe Pultruded Carbon Fiber Tube For Sale

Feature:

Carbon Fiber Tube,Pultruded Carbon Fiber Pipe,OEM Carbon Tube For Sale

Pultruded Carbon Fiber Tubes are manufactured by a pulling continuous carbon fibers combined with a resin matrix through a heated steel forming die. This process is referred to as pultrusion and is used for producing continuous lengths of composite materials with constant cross-sections.

As the carbon fibers are saturated with the resin mixture and then pulled through a die, the hardening of the resin is initiated by the heat from the die and a rigid, cured tube is formed in the shape and size of the die.  The majority of the fibers are running in the 0 degree direction, along the length of the tube, to produce an extremely stiff and lightweight tube with a very low coefficient of expansion.  This type of construction offers a high stiffness to weight ratio tube with incredible linear strength, due to the orientation of the carbon fibers, and tight outer diameter (OD) tolerances.

Our Pultruded Carbon Fiber Tubes have a matte finish surface and are covered with a light glass scrim to improve structural integrity of the tube.

Application:C

Carbon Fiber Tube,Pultruded Carbon Fiber Pipe,OEM Carbon Tube For Sale

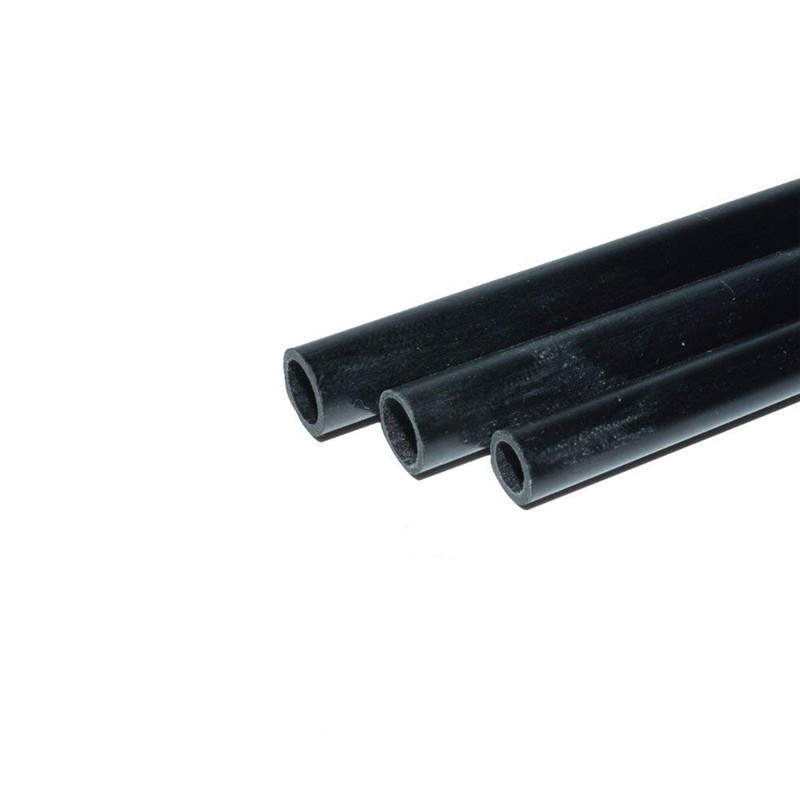

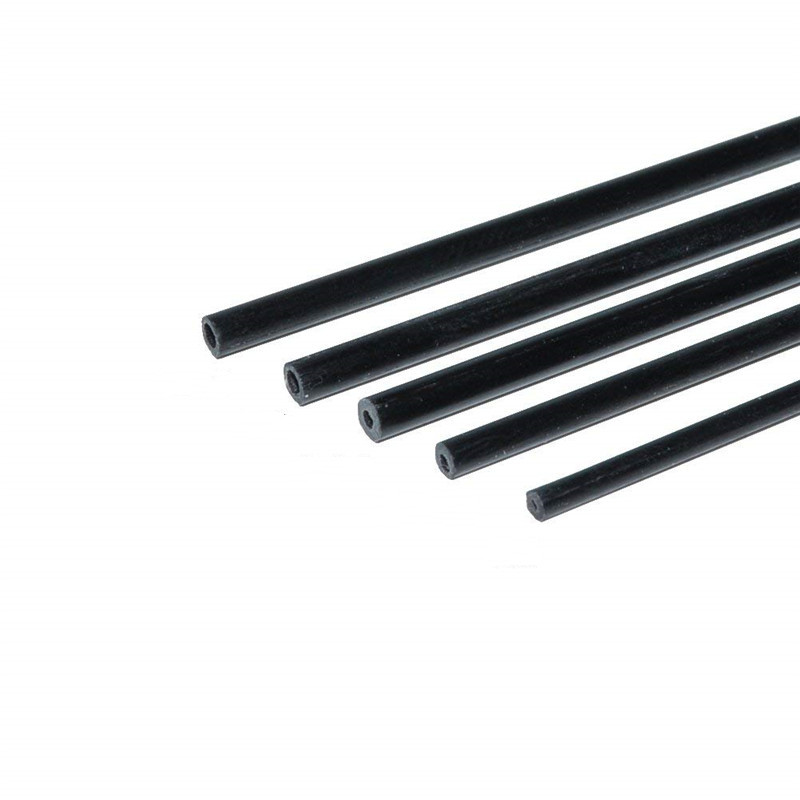

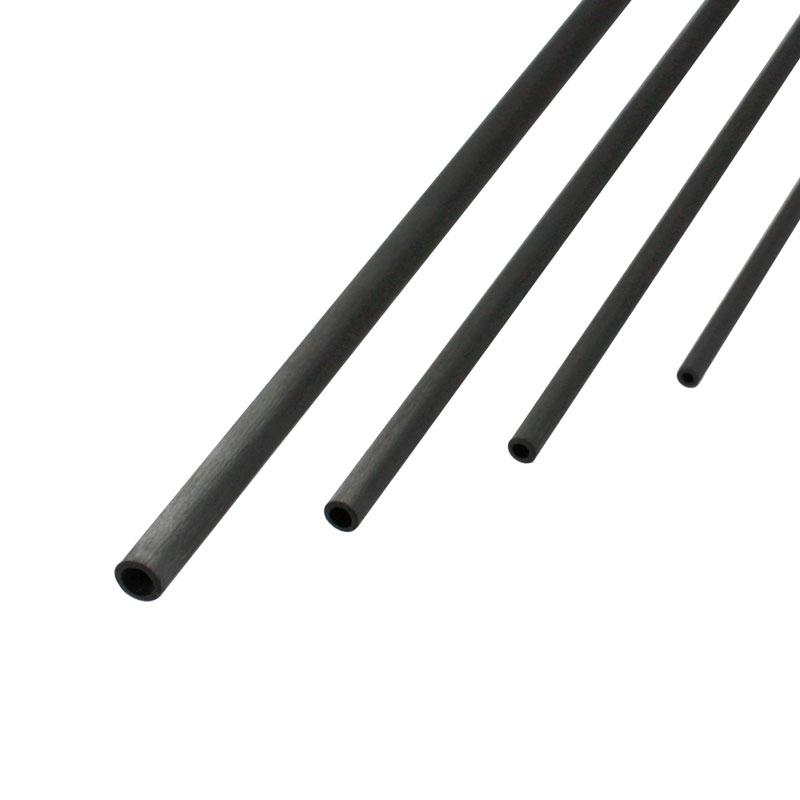

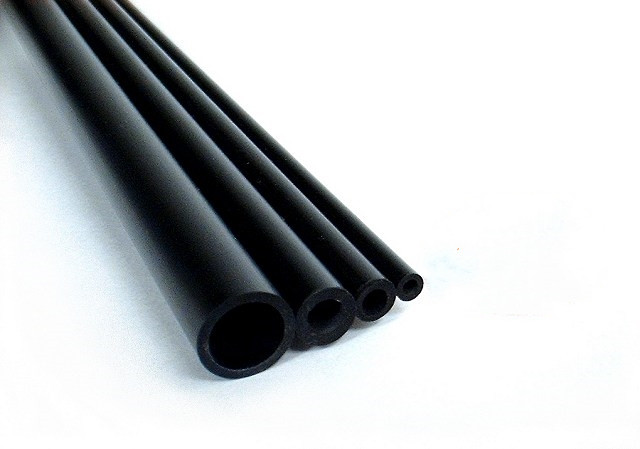

Product Images:

ODM OEM Spearfishing Pultruded Carbon Fiber Tube For Sale

Pultrusion is a continuous process for manufacturing composites with a uniform cross-sectional shape. Fiber reinforcement is pulled through a resin-impregnation bath and into a shaping die where the resin is subsequently cured, or set. Heating to both gel and cure the resin is accomplished within die length. Pultrusion yields continuous lengths of material with high unidirectional strengths.
